Geoscientists found the most dangerous part of a famous West Coast fault

The segment sits offshore of Washington state

A bunch of stumps protrude from the waves on a beach.

The stumps of the Neskowin Ghost Forest in Oregon are the remains of an ancient spruce forest that was suddenly lowered and buried by a Cascadia mega-earthquake. The stumps of the ghost forest, shown protruding from the sand here, have been estimated to be more than 2,000 years old.

Rob DeGraff/Flickr (CC BY-NC-ND 2.0)

The most destructive Cascadian earthquakes are likely to slam offshore of Washington state and Vancouver Island, new data reveal.

The Cascadia megathrust is a massive fault thought capable of generating devastating magnitude 9 earthquakes similar to the 2011 Tohoku temblor, but its structure has long eluded scientists. Now, data from the most comprehensive survey yet show that the fault is not a single, continuous fracture but comprised of at least four segments. The most dangerous appears to stretch from off the coast of southern Vancouver Island through Washington state, researchers report in the June 7 Science Advances.

“The Cascadia megathrust is a huge risk to people living in the Pacific Northwest,” says seismologist Edwin Nissen of the University of Victoria in British Columbia, who was not involved in the study. While the portion of the fault extending from near the island’s southwest coastline may be the most likely to host the largest earthquakes, he says, segments farther south along Oregon’s coast may be more likely to experience slightly smaller and more frequent temblors.

Megathrust faults occur where two tectonic plates converge, especially in places where one plate pushes under the other, which is called a subduction zone. The plates typically get stuck and periodically slip, releasing immense amounts of earthshaking energy. Such settings have generated the largest temblors in history, including the 2004 Sumatra quake (SN: 5/25/17).

Off the west coast of North America, the Cascadia megathrust follows the shoreline roughly 1000 kilometers from British Columbia to northern California. It is where the northeast-bound Juan de Fuca plate slides under the North American plate.

In the last 10,000 years, 19 quakes greater than magnitude 9 have rocked Cascadia. The most recent, a magnitude 9 that struck in 1700, dropped coastal forests into the tidal zone and fomented tsunami waves that reached Japan. The imminent threat of the next Cascadian quake has inspired a slew of articles, books, and documentaries.

And yet, compared with the megathrusts offshore Japan and New Zealand, the Cascadia fault is poorly understood. “Most subduction zones have lots of small earthquakes occurring all the time, which give us a lot of information about the geometry of the faults,” Nissen says. Meanwhile, “Cascadia is eerily quiet in terms of seismicity.”

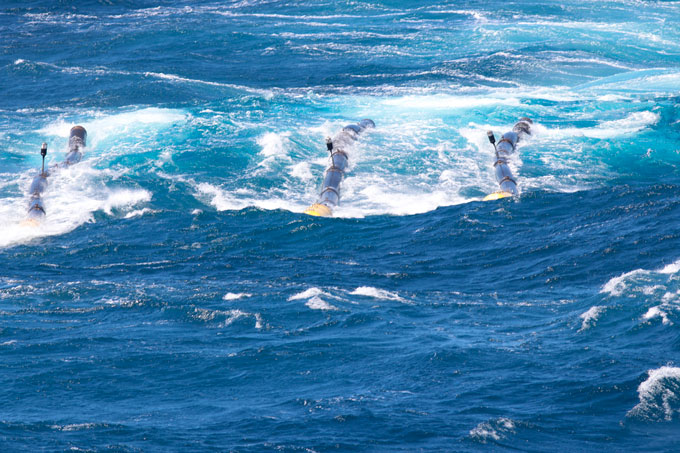

Scientific instruments are shown being towed through the sea.
A set of air guns (shown) were towed behind the Marcus G. Langseth research vessel and used to generate sound waves that exposed the Cascadia megathrust’s structure. Madeleine Lucas

In 2021, marine geophysicist Suzanne Carbotte of Columbia University and colleagues aboard the Marcus G. Langseth research vessel conducted a seismic survey along a 900-kilometer stretch of the zone, towing underwater air guns that blasted sound waves into the seafloor. Faults and layers of rocks underground reflected these waves back upwards, where they were detected by a 15-kilometer-long array of receivers pulled behind the craft.

“It’s the first time that a regional survey that spans almost the whole subduction zone has been conducted,” Carbotte says. “Prior to this, people had looked at individual, small regions, like on the order of 200 kilometers at most.”

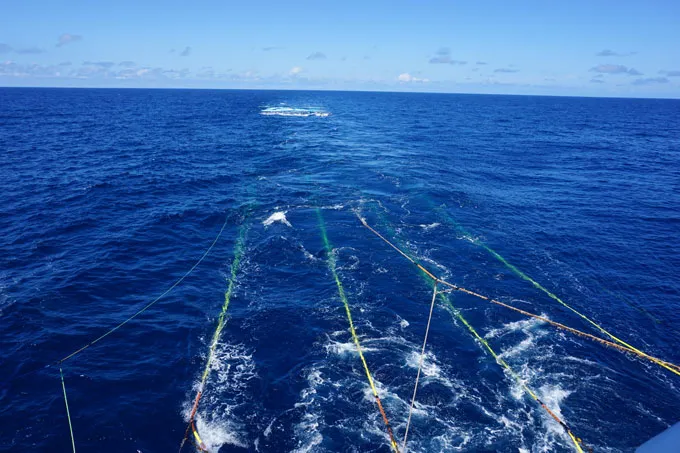

From the back of a boat, cables extend out into the sea.
Researchers towed a 15-kilometer-long array of seismic instruments (shown) behind the Marcus G. Langseth research vessel to measure the reflections of sound waves to survey the Cascadia megathrust.Madeleine Lucas

The data revealed that as the Juan de Fuca plate grinds under the North American plate, it splits into segments, like a sheet of plywood passing through a row of buzzsaws. This segmentation appears to be largely driven by the irregular distribution of rigid rocks in the overlying North American plate, which unevenly warp the incoming plate.

“That segmentation is really important because that’s one way to stop an earthquake,” Nissen says. During a quake, a fault will start to slip at a single underground point, or hypocenter. The motion will then spread along the fault. Large faults provide more room for temblors to propagate, giving rise to bigger and longer-lasting quakes. But if a fault is segmented, the breaks may prevent motion on one segment from continuing onto another, limiting how large a quake can get.

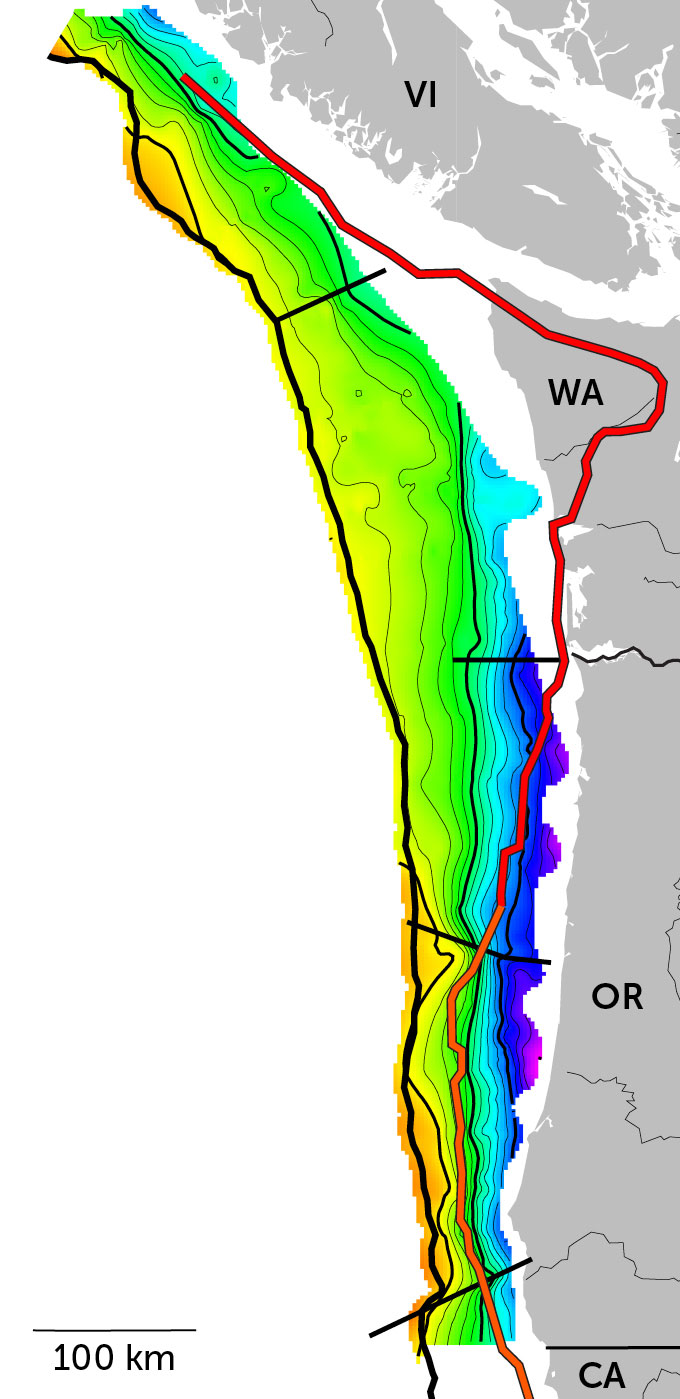

Cascadia fault with segments marked by black lines
The Cascadia megathrust is comprised of at least four segments, the most dangerous of which appears to sit off the coast of Washington State and south Vancouver Island. In this region, the eastward-moving Juan de Fuca plate slides under the North American plate at a relatively shallow angle. The megathrust’s depth is shown here, with the shallowest depths indicated by yellow and orange, moderate depths in green and the deepest sections in blue and purple. Black lines mark the edges of the fault segments, and the wavy red line demarcates the edge of a rigid underground rock layer that may be warping the megathrust and contributing to its segmentation. Modified from Carbotte et al/Science Advances, 2024

Nonetheless, it’s still possible for some quakes to spread across several — or all — of the segments, Nissen says. “There’s evidence that 1700 was such an earthquake.”

The data also showed that the segment that extends from southern Vancouver Island is relatively smooth, making it easier for quakes to grow, and it appears to descend beneath the North American plate at a very slight angle, Nissen says, only about 2 to 4 degrees. The largest earthquakes generally occur on shallow dipping faults within subduction zones.

“If it’s shallow and really gently dipping, that means that the earthquake could potentially propagate much further to the east, and therefore to the coastline — and people living in Victoria, Seattle, Vancouver — than was previously thought,” Nissen says.

The study provides “a lot of information that can be used in assessing and forecasting earthquakes,” says Mark Petersen, a geophysicist of the U.S. Geological Survey in Golden, Colo. and chief of the National Seismic Hazard Model Project, who was not involved in the research (SN: 2/6/24). Knowing the details of the fault’s geometry is crucial for gauging how close future quakes may get to major cities like Seattle, he says. The next update to the agency’s hazard model for the Pacific Northwest will be made in 2029.

The survey also revealed small faults close to the coast, which could potentially slip and generate tsunami waves. Waves spawned by a megathrust earthquake farther offshore would take minutes to reach the coast, Nissen says, but if these nearshore faults slipped too, the resulting tsunami could hit the beach much sooner.

Nikk Ogasa is a staff writer who focuses on the physical sciences for Science News. He has a master's degree in geology from McGill University, and a master's degree in science communication from the University of California, Santa Cruz.
