Planck by Planck

The upcoming ESA mission will study the cosmic microwave background radiation for clues about the dawn of time

Editor’s note: This story was originally posted April 11. The mission successfully launched May 14.
Pssst!  Want to see the birth of the universe? Astronomers say it’s not a scam. The launch of the European Space Agency’s Planck mission, set for May 6, will put into orbit a new tool —the microwave equivalent of polarized sunglasses — that may offer a view of the dawn of time. Before the first galaxies, before the first stars, there was light —the brilliant glow of radiation created during the Big Bang, 13.7 billion years ago. The remnant of that ancient light, now cooled by the expansion of the universe to a frigid 2.7 kelvins, is known as the cosmic microwave background. Instruments on the Planck craft will explore this radiation in exquisite and unprecedented detail. To minimize interference from Earth’s own microwaves — which are 100 times more intense than the cosmic microwave background — Planck will orbit 1.5 million kilometers from the planet. It will take about six weeks to reach that orbit; once Planck settles in, its mission will last at least 14 months. During that time, Planck will record temperature variations in the background radiation over a wide range of radio and microwave wavelengths. Its instruments are capable of measuring differences of less than a millionth of a kelvin. Temperature blips at this scale were induced by tiny lumps in the otherwise smooth early universe. Those lumps gave birth to the cosmic tapestry observed today, a web of mammoth galaxy clusters strung along giant filaments separated by huge voids. By recording temperature variations more precisely than its predecessor in space, NASA’s Wilkinson Microwave Anisotropy Probe or WMAP, Planck has the chance to measure the composition and shape of the early universe at a resolution 10 times better than any previous mission. To detect these smallest of details, Planck will have some really cool instruments, with the most sensitive detectors chilled to within a tenth of a degree above absolute zero. The craft’s 1.5-meter–wide telescope will focus radiation onto two sets of detectors, among the coldest ever to operate in space. By recording microwaves over a wide range of frequencies, the two sets of instruments will more precisely sample the faint microwave background and more accurately distinguish it from the spurious microwave emissions of countless galaxies, including the Milky Way. Planck’s instruments can also detect signatures of polarized light from the microwave background. One of these signatures would be a telltale sign of primordial gravitational waves, ripples in spacetime from the earliest moments of the universe. Finding those waves would give astronomers a glimpse of the universe as it appeared when it was only a trillionth of a trillionth of a trillionth of a second old. The most popular model of the birth of the universe, a theory called inflation, predicts the existence of these gravitational waves. The simplest version of inflation suggests that the waves’ amplitudes were large enough to leave indirect imprints on the microwave background, visible with Planck’s microwave-tuned sunglasses. If Planck finds the imprint of those waves, “this would be the smoking gun for inflation” and a victory for cosmology, says theorist Michael Turner of the University of Chicago. Several ground-based telescopes are now racing to find the same polarization pattern, he adds, but Planck, “with its full sky and frequency coverage, seems to have the edge in the race.” Planck’s secret weapons are bolometers, which record microwaves between the frequencies of 100 and 857 gigahertz. Fifty-two bolometers are part of one set of detectors, the High Frequency Instrument. It will pick up minute increases in heat —as low as a millionth of a kelvin — created when photons from the microwave background strike electrons in the device. The bolometers are sensitive enough to detect the different energies of the photons, and thus can measure the fine-scale temperature variation in the microwave background. “Bolometers are the new kid on the block in space,” providing both high sensitivity and spatial resolution for recording small temperature variations in the microwave sky, says Planck scientist François Bouchet of the Institute of Astrophysics in Paris. Twenty of the High Frequency Instrument bolometers will detect the microwave background light regardless of its polarization; the other 32 will home in on polarized light, which travels in a vortex pattern. Scanning the rest of the microwave spectrum is an array of 22 microwave receivers, similar to those used on WMAP but cooled to 20 kelvins by one of Planck’s three cryocoolers. Known as the Low Frequency Instrument, this array will record the microwave background at relatively low energies, between 30 and 70 gigahertz, and all its receivers are set to detect polarized light.

Signs of inflation

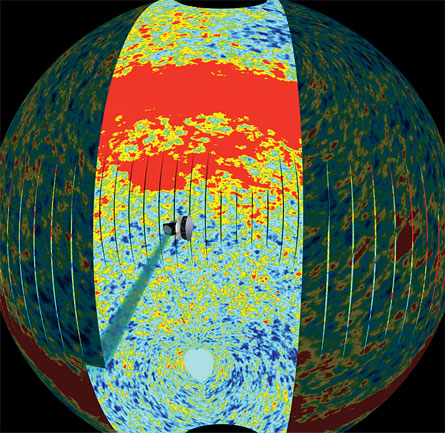

SCANNING THE COSMOS | | Named for Max Planck (1858–1947), the German scientist who originated quantum theory, the Planck craft will sit between Earth and the sun and scan the entire sky in long, circular strips. Its mission is to detect tiny, potentially telling temperature variations within the cosmic microwave background, the radiation from the Big Bang. Shown is an illustration of Planck scanning that background radiation, represented by its currently understood temperature profile (red for hotter regions and blue for cooler). C. Carreau/European Space Agency

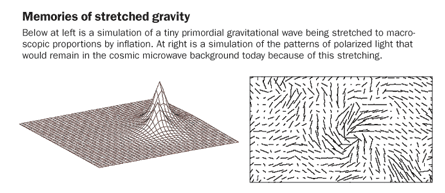

MEMORIES OF STRETCHED GRAVITY | What you’re seeing is a simulation of a tiny primordial gravitational wave being stretched to macroscopic proportions by inflation. At right is a simulation of the patterns of polarized light that would remain in the cosmic microwave background today because of this stretching. Gravitational wave: S. Dodelson; Polarization pattern: W. Hu

Physicists are especially interested in  gravitational waves because of their link to inflation, which is Planck’s raison d’être. That theory was born in 1980 when a young theorist named Alan Guth, now at MIT, proposed that the universe underwent an unimaginably brief but enormous growth spurt immediately after birth. The baby cosmos ballooned from one billionth of a trillionth of a hydrogen atom’s diameter to that of a soccer ball within just 10-35 seconds. Despite all the evidence supporting the theory, Guth wasn’t sure how exactly inflation began. Nearly three decades later, theorists still don’t know.

Inflation became popular, though, because it solves several problems. One problem is that on the largest scales, space is geometrically flat, even though Einstein’s theory of general relativity would allow it to be curved. Another puzzle: Even though widely separated parts of the universe are too remote to have ever been in contact, they look remarkably similar, with galaxies clustering in the same patterns.

Inflation takes care of the first conundrum by stretching the universe so much that any local curvature of space from a concentration of mass flattens out. And by positing that the cosmos began as a tiny subatomic speck, with all regions initially in contact before inflating, the theory neatly explains why the universe looks so uniform from place to place.

If the idea is correct, inflation was triggered by an energy field called the inflaton that drove the early universe to rapidly expand, stretching out and freezing what otherwise would have been random, short-lived quantum fluctuations. Random quantum fluctuations in the inflaton field itself would have created spatial variations in the density of matter. Inflation would have stretched those variations to observable size.

Regions of the sky that today are separated by twice the apparent diameter of the full moon were once packed into a space much tinier than the diameter of a proton, inflation theory says. “Just the idea that you have the subatomic world projected on the sky today is mind-boggling,” says Turner.

“If you want quantum fluctuations to explain all the structure in the universe, you need something like inflation,” says Planck mission scientist Jean-Loup Puget of the University of Paris’ Institute of Spatial Astrophysics in Orsay. “We want to see if this really works.”

No one knows exactly when inflation started (or why it stopped) and what the earliest moments of the universe were truly like. That’s where the prospect of recording gravitational waves by the Planck mission comes in. The gravitational waves are disturbances in spacetime itself, and are only stretched — not created — by the inflaton field.

Moreover, the soup of electrons and other elementary particles that filled the universe for its first 380,000 years would have posed no obstacle for gravitational waves. Unlike light, which remained trapped by this fog, gravitational waves zipped right through. These waves, some created a mere fraction of a second after the Big Bang, were free to leave their subtle imprint on the cosmic microwave background when that radiation began streaming into space.

As a result, gravitational waves have a simpler relationship to inflation than do fluctuations in the density of matter, says Turner. Finding evidence for gravitational waves would be a more direct indicator that inflation happened and of when it began.
Planck can’t detect gravitational waves directly — that would come with space-based versions of experiments such as LIGO, the Laser Interferometer Gravitational-Wave Observatory (SN: 1/8/00, p. 26). But if their amplitudes are large enough, gravitational waves leave behind a detectable trail, one Planck is built to find.

The waves simultaneously stretch space in one direction while squeezing it in a perpendicular direction. This twisting forces the light to vibrate in specific directions as it journeys into space. In other words, the light is polarized. One of the polarization patterns induced by gravitational waves, called the E mode, is identical to that produced by density variations. But the other pattern, known as the B mode, has a swirling or vortexlike character that can be produced only by gravitational waves.

If Planck detects B mode polarization, it has detected the waves — and recorded something created during the earliest moments of the universe.
Planck “has the potential of making the first serious assault on the B mode polarization,” says Turner.

That polarization pattern can be detected only if the gravitational waves are large enough. Inflation indicates that the strongest gravitational waves are those with the longest wavelengths. Their strength depends on how rapidly the universe expanded during inflation, and that in turn depends critically upon when inflation began.

The earlier inflation kicked in, the larger the waves’ amplitude, says theorist Scott Dodelson of both the Fermi National Accelerator Laboratory in Batavia, Ill., and the University of Chicago. If the waves are amplified enough for Planck to detect, then inflation turned on sooner rather than later.

Click to view a larger version of this timeline.
Click to view a larger version of this timeline.

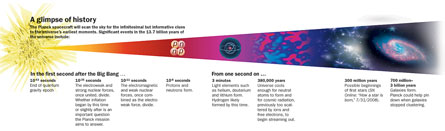

Timeline for the dawn of time

Trying to understand whether inflation began by 10-35 seconds after the birth of the universe or a tiny fraction of a second later may seem like an arcane endeavor. But finding out when inflation happened could help indicate why it happened. The energies of particles in the universe were higher at these hotter, earlier times, a trend with important implications for the fundamental forces of nature.

The standard model of particle physics insists that, when the universe was hotter than 1015 kelvins, the now-separate weak and electromagnetic forces were a single entity called the electroweak interaction. At earlier times, in the era of grand unification when energies were even higher, the electroweak interaction was united with the strong nuclear force. So whether inflation began at the time of grand unification or slightly later, when only the electromagnetic and weak interactions were unified, could determine how inflation was linked to the energy fields associated with particular elementary particles.

“Once you detect these gravitational waves, you will know with a one-line formula when inflation took place and what the energy scale of inflation is,” says Turner.

Still, he adds, “it’s going to be a very hard slog because there is not a single theorist that will stand out there and say, ‘You’ll have to find the gravitational waves at this level, otherwise I’ll eat my Power Point.’” Planck’s search for gravitational waves “is truly high-reward, high-risk physics,” Turner says.

Although the microwave background was generated by the Big Bang, telescopes see the radiation as it appeared when it first streamed into space some 380,000 years later. Before that time, the universe was too hot for neutral atoms to exist; the radiation was relentlessly scattered by a cloud of ions and free electrons, the way a search light gets lost in a dense fog.

Planck should provide further details on the early universe by detecting the polarization of the microwave background due to the variations in density.  These density variations caused free-floating electrons to scatter the microwave background in a way that imparted the specific polarization patterns.

Those free electrons existed during two very separate epochs — the time just before the universe cooled enough for electrons and ions to combine into atoms, and at the much later time when starlight first flooded the universe with ultraviolet light and liberated electrons that had been bound to atoms.

By detecting this polarization, Planck will help pin down exactly not only when the universe first cooled sufficiently for neutral atoms to form, but also the time when the first stars were born.

This facet of the mission “is going to be a huge step forward,” says Bouchet.

Hot (old) sounds

Even if Planck never finds the signature of gravitational waves, it still has a whole cosmic symphony to listen to. That’s because sound waves and the cosmic microwave background go hand in hand.

Soon after the Big Bang, and until the universe cooled 380,000 years later, wherever gravity acted to draw matter in, the photons bound to that matter resisted and exerted an outward pressure. It’s this tug-of-war between gravity’s pull and radiation’s push that generated acoustic oscillations — the cosmic equivalent of sounds.

Like any sound waves, these cosmic acoustic waves consist of a train of compressions and rarefactions — in this case traveling through the hot plasma of electrons and photons glued together within the young universe. The compressions heated the gas while the rarefactions stretched and cooled it. The waves imparted a pattern of temperature fluctuations into the radiation. The pattern persisted even as the universe cooled and the freed radiation journeyed into space.

By measuring peaks in cosmic microwave background temperatures on a host of different spatial scales, Planck will record this primordial symphony as never before. Just as musicians can discern the nature of a violin by listening to the richness of its tones and overtones, cosmologists can examine the highs and lows in the temperatures of the microwave radiation to discern the properties of the universe: its age, how much dark matter and ordinary matter it contains, how fast it’s expanding.
NASA’s WMAP, launched in 2001 and still collecting data, studied the first few of these peaks across the full sky. A slew of ground-based telescopes have examined these peaks over more restricted portions of the sky. But by measuring the higher overtones, Planck will shrink the number of allowed models for the birth of the universe and provide new insight into the physics that debuted during the first billionths of a second after the Big Bang, says Puget.

Good noise

As a bonus, the data Planck collects may also provide new information on dark energy, the mysterious substance that flips gravity from a cosmic pull into a cosmic push and causes the universe to expand at an ever-faster rate (SN: 2/2/08, p. 74).

Once dark energy becomes strong enough to accelerate cosmic expansion, galaxies can no longer congregate into clusters. Understanding how early — and how quickly — galaxies formed clusters could shed light on the nature of dark energy and whether it has remained constant over the lifetime of the universe. And Planck can help answer that question using information that it was designed to discard.

To clearly view the cosmic microwave background, Planck will record and eliminate foreground sources — emissions from the Milky Way and other galaxies. But one man’s noise is another man’s data. For some astrophysicists, the discarded information is a gold mine. It could reveal the magnetic structure of the Milky Way, radio emissions from a host of nearby galaxies and several remote ones, and the evolution of galaxy clusters. The last could be particularly intriguing in shedding light on dark energy.

Still, for many cosmologists, Planck’s main goal — “pinning down the parameters of the physics which produced inflation” —remains paramount, says Dodelson.

“You can’t dream of building an accelerator big enough to detect any of those parameters,” he notes. The world’s biggest atom smasher, the Large Hadron Collider near Geneva, is set to resume operation in the fall, about the same time Planck begins gathering data. Yet the energies available at the LHC are only one-trillionth the level Planck will probe in looking for the signal of gravitational waves, Dodelson says, adding: “That we can hope to learn anything at all about the energy scale when the universe began is unbelievable.”
