A new type of skyrmion simulates linked magnetic fields that may hold glowing orbs together, too
The physics behind a weird electrical phenomenon — glowing orbs of lightning — may be mimicked by something even stranger. A magnetic structure proposed for the natural oddity known as ball lightning makes an appearance in a newfound variety of a knotlike entity called a skyrmion, a team of scientists reports.
Typically observed during thunderstorms, ball lightning is poorly understood. Anecdotal reports describe eerily glowing spheres that float through the air for several seconds before fading (SN: 2/9/02, p. 87). That’s much longer than standard lightning strikes, which last tens of microseconds, and researchers are still struggling to explain how the fireballs persist.

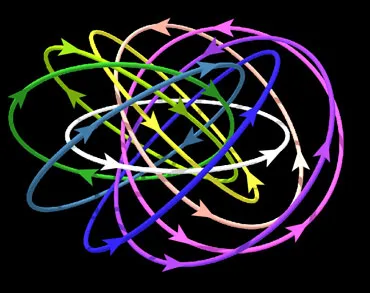

One theory, proposed in the 1990s, suggests that ball lightning is a plasma held together by magnetic fields arranged in rings that link together into a knot. “Because it’s linked up in this tight way, it can’t really fall apart,” says physicist David Hall of Amherst College in Massachusetts. “That could provide a reason why ball lightning survives as long as it does.”
Hall and colleagues created their skyrmion in a state of matter called a Bose-Einstein condensate, composed of atoms cooled to a temperature so low that they all take on the same quantum state and begin acting as if they are one unified entity (SN: 10/13/01, p. 230). The atoms that make up the Bose-Einstein condensate each have a quantum property called spin, which makes them behave like tiny magnets.
When the scientists switched on a specially designed magnetic field, the spins arranged into a twisting structure of loops, knotting up into a configuration known as a Shankar skyrmion. That arrangement was predicted theoretically about 40 years ago, but not seen in the real world until now. While skyrmions found in thin magnetic materials are two-dimensional whirls, the new skyrmion is a 3-D beast, the researchers report March 2 in Science Advances.
Within the condensate, the spins produced something analogous to a magnetic field: The condensate behaved as if it were a charged particle being pushed around by a magnetic field when in reality no such magnetic field existed. Like the skyrmion itself, the scientists realized, the imitation magnetic field was knotted, and it matched the interlinked rings of magnetic fields proposed for ball lightning.
Eventually, studying 3-D knotted magnetic fields like those potentially present in ball lightning might help scientists devise better ways to control plasmas within future fusion reactors for generating power, the researchers suggest.
The creation of knotted structures in Bose-Einstein condensates is in its infancy, and such efforts are “very welcomed” says physicist Egor Babaev of KTH Royal Institute of Technology in Stockholm, who was not involved with the research. “People are just starting to scratch the surface of these objects.”
W. Lee et al. Synthetic electromagnetic knot in a three-dimensional skyrmion. Science Advances. Published online March 2, 2018. doi:10.1126/sciadv.aao3820.
E. Conover. Skyrmions open a door to next-level data storage. Science News. Vol. 193, February 17, 2018, p. 18.
D. Castelvecchi. Dusty fireball: Can lab-made blob explain ball lightning? Science News. Vol. 173, January 19, 2008, p. 36.
P. Weiss. Anatomy of a lightning ball. Science News. Vol. 161, February 9, 2002, p. 87.
