Earth’s core may have hardened just in time to save its magnetic field

This shift both prevented the protective magnetic field from collapsing and recharged it

Earth's magnetic field

SOLAR SHIELD  Earth’s magnetic field (illustrated) is powered by circulation of iron-rich fluid in the core. New research suggests Earth’s solid inner core formed after 565 million years ago, saving a weakening magnetic field from collapse.

Marc Ward/Shutterstock

Earth’s inner core solidified sometime after 565 million years ago — just in time to not only save the planet’s protective magnetic field from imminent collapse, but also to kick-start it into its current, powerful phase, a new study suggests.

The finding, reported online January 28 in Nature Geoscience, supports an idea previously proposed by simulations that Earth’s inner core is relatively young. It also provides insight into how, and how quickly, Earth has been losing heat since its formation 4.54 billion years ago —key to understanding not only the generation of the planet’s magnetic shield but also convection within the mantle and plate tectonics.

“We don’t have many real benchmarks for the thermal history of our planet,” says Peter Olson, a geophysicist at Johns Hopkins University who was not involved in the new study. “We know the interior was hotter than today, because all planets lose heat. But we don’t know what the average temperature was a billion years ago, compared with today.” Pinning down when iron in the inner core began to crystallize could offer a window into how hot the interior of the planet was at the time, Olson says.

The planet’s iron-nickel core is made up of two layers: a solid inner core and a molten outer core. When that solid inner core formed is a long-standing mystery (SN: 9/19/15, p. 18). “Proposed ages have been anywhere from 500 million years ago to older than 2.5 billion years,” says coauthor John Tarduno, a geophysicist at the University of Rochester in New York.

The interplay of the two layers drives the geodynamo, the circulation of iron-rich fluid that powers the magnetic field. That field, surrounding the planet, protects Earth from being battered by the solar wind, a constant flow of charged particles ejected by the sun. As the inner core cools and crystallizes, the composition of the remaining fluid changes; more buoyant liquid rises like a plume while the cooling crystals sink. That self-sustaining, density-driven circulation generates a strong magnetic field with two opposing poles, north and south, or polarity.

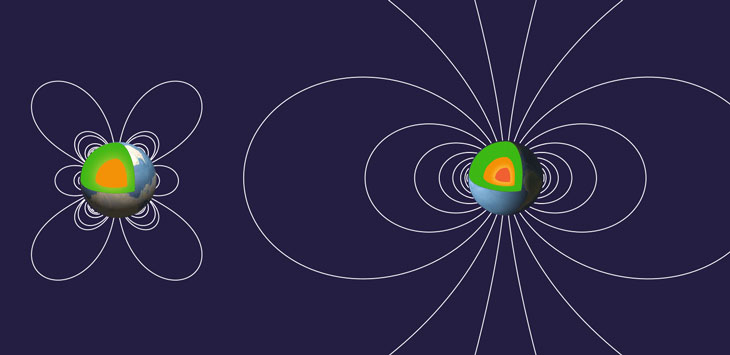

Traces of magnetism in ancient rocks suggest that Earth had a magnetic field as far back as 4.2 billion years ago. That earlier field was likely generated by heat within the planet driving circulation within the molten core. But over time, computer simulations suggest, the heat-driven circulation wouldn’t have been strong enough alone to continue to power a strong magnetic field. Instead, the field began to shut down, signaled in the rock record by weakening intensities and rapid polarity reversals over millions of years. And then, at some point, Earth’s inner core began to crystallize, jump-starting the geodynamo and generating a new, strong magnetic field.

Now scientists think they’ve found evidence of when that magnetic field breakdown was happening. Researchers led by geophysicist Richard Bono, now at the University of Liverpool in England, examined magnetic inclusions within a suite of rocks in Quebec, Canada, dating to about 565 million years ago. Analyses of the inclusions — needlelike iron-rich grains that align themselves with the orientation of the magnetic field that existed when the rocks formed — show that the planet’s magnetic field was extremely weak at that time, the researchers report.

“These paleo-intensity values were 10 times less than the present magnetic field, lower than anything observed previously,” Tarduno says. “It suggested there’s something fundamental going on in the core.”

Combined with previous studies that have found that the magnetic field was also rapidly reversing polarity during that time period, the new result indicates that Earth’s field may have been on the point of collapse about 565 million years ago. That suggests that the inner core hadn’t yet solidified. Fortunately for life on Earth, it eventually did.

“Presumably things worked out well for our planet,” Tarduno says. “But that doesn’t necessarily mean it had to.”

The new finding is “potentially very important,” Olson says. Because the rocks bearing the magnetic grains didn’t cool instantaneously but over a long time, the data represent an average field intensity for about a 100,000-year period. That means the scientists haven’t just captured a snapshot in time of a fluctuating field, but have found a true, persistent signal, he says. Computer simulations have suggested that the weak field phase may have lasted much longer, from about 900 million to 600 million years ago. More paleo-intensity data from within that time span, as well as from other locations, would help to confirm that the observed weak phase really signaled the final throes of that pre–inner core field.

Peter Driscoll, a geophysicist at the Carnegie Institution for Science in Washington, D.C., was one of the theoreticians who estimated how long the weak phase might have lasted. Driscoll, whose commentary accompanies the study in Nature Geoscience, notes that a young solid inner core also highlights lingering conundrums about how quickly Earth cooled. For example, “if the core is cooling quickly, that means it was very hot in the recent past, and that the lower mantle was very hot in the recent past” — so hot that both were molten just 1 billion to 2 billion years ago. “We absolutely do not see that in the rock record.”

Driscoll adds that he hopes the new study garners attention to the glaring gap in paleomagnetic data from this time period. “There’s a lot more time here that we could be filling in.”

Editor’s note: This story was updated February 1, 2019, to clarify that the Earth’s core solidified sometime after 565 million years ago. It was around 565 million years ago that Earth’s magnetic field was on the brink of collapse, which was a precursor to when the core hardened.

Carolyn Gramling is the earth & climate writer. She has bachelor’s degrees in geology and European history and a Ph.D. in marine geochemistry from MIT and the Woods Hole Oceanographic Institution.
