Gadget could one day serve on search-and-rescue missions
Modular Robotics Lab/Univ. of Pennsylvania
CHICAGO —“Snakes on a plane” might be a good strategy for building rescue robots.
Pairing two snakelike robots with a flying one has let researchers combine the exploring skills of small, ground-based bots with the swift moves of an aerial machine.
Engineers have created search-and-rescue robots before — tanklike machines with heavy-duty treads — but most of these bots muscle over rough terrain with brute force. They can disturb damaged areas and have trouble reaching nooks and crannies within the wreckage.
Agile snakebots can burrow through rubble, but they can get stuck, said Stella Latscha, a University of Pennsylvania mechanical engineer now at SpaceX in Hawthorne, Calif. “If a person has to run out and move them that really defeats the purpose.” So she and colleagues designed a four-propeller helicopter that can airlift wheeled snakebots out of tight spots.
The robot trio speeds over flat terrain as a team, or splits up to patrol the air and the ground separately. Using an Xbox controller, Latscha and colleagues drove snakebots through a 4-inch pipe and even up stairs.
For faster vertical trips, the rolling bots use magnets to snap into the helicopter, which can fly carrying one snakebot for about five minutes, the researchers reported September 16 at the IEEE/RSJ International Conference on Intelligent Robots and Systems.

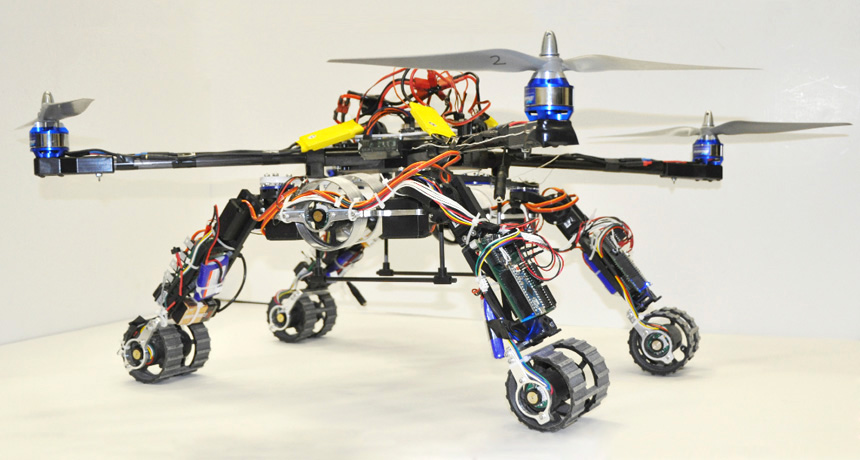

TEAMING UP A four-propeller helicopter can carry a wheeled snakelike robot through the air, or connect with two snakebots to speed over flat terrain. On their own, the snakebots can squeeze through a 4-inch tube, drive over gravel and climb stairs. The helicopter can also quickly bring a bot up a flight of stairs.
Credit: Modular Robotics Lab/Univ. of Pennsylvania
S. Latscha et al. Design of a hybrid exploration robot for air and land deployment (H.E.R.A.L.D) for urban search and rescue applications. IEEE/RSJ International Conference on Intelligent Robots and Systems, Chicago, September 16, 2014.
