How math helps explain the delicate patterns of dragonfly wings

For some insects, no two wings are exactly alike

By
8:00am, September 23, 2018
dragonfly

GOSSAMER WINGS  Thin veins form different patterns on each dragonfly’s wings. Scientists have explained mathematically how these sections may form.

Sponsor Message

The dainty veins gracing the wings of dragonflies and other insects are like fingerprints: Each wing displays a distinct pattern. A randomized mathematical process may help explain how certain thin filaments, called secondary veins, form these complex patterns, a new study finds.

Insect wings consist of two types of veins, both of which provide structural support (SN: 6/24/17, p. 5). Primary veins, which tend to be long and relatively straight, are found in the same locations on the wings of each member of a species. But the smaller, secondary veins appear in slightly different places on every wing.

Together, these two types of veins section off the wing into a multitude of tiny pieces, like bits of a stained-glass window. Scientists characterized 468 wings from 232 species by calculating the area of each tiny section, and quantifying whether it was circular or elongated.

Going round

In a mathematical simulation, scientists recreated the shapes of dragonfly wings sections formed by primary veins (black lines) and secondary veins (red). The shapes of sections in a simulated wing (right) mostly matched a real one (left).

A particular series of steps re-created the wings’ patterns, scientists report September 17 in Proceedings of the National Academy of Sciences. The team started by simulating a scaled-down wing, to mimic processes happening while the insect is developing. First, the placement of primary veins divided the wing into large regions. Then, the researchers randomly selected evenly spaced locations, termed “inhibitory centers,” within each wing region. In a real insect, these inhibitory centers might correspond to places where a chemical cue prevents the formation of veins.

Researchers then selected locations for secondary veins via a mathematical mechanism called a Voronoi tessellation. It sections off a region around each selected inhibitory center such that every spot inside a section is closer to its inhibitory center than to any other. Finally, the wing grows, stretching the sections and making some regions more elongated.

Growing up

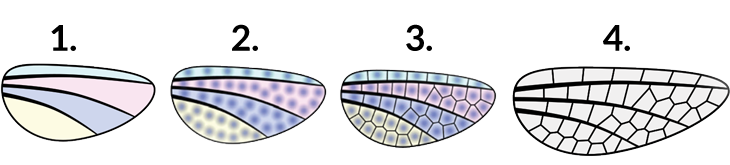

A four-step process can explain the sections seen on insect wings. 1. Primary veins divide sections of a wing into separate regions (indicated by different colors) 2. Evenly spaced “inhibition centers” form (gray dots). 3. Secondary veins form around those centers. 4. The sections stretch as the wings grow.

This technique produced simulated dragonfly wings with sections that mostly matched the real wings in elongation and size. The technique also worked for distantly related insects with differently shaped wings, such as grasshoppers.

The researchers don’t hypothesize about a molecular mechanism behind the veins’ development, showing only that the mathematical procedure can reproduce the patterns. Similar math-based explanations have been postulated to explain how other patterns form in biology, from zebrafish stripes (SN: 2/22/14, p. 9) to lizard spots (SN: 5/13/17, p. 32).

Citations

J. Hoffmann et al. A simple developmental model recapitulates complex insect wing venation patterns. Proceedings of the National Academy of Sciences. Published online September 17, 2018. doi:10.1073/pnas.1721248115.

Further Reading

S. Milius. The blue wings of this dragonfly may be surprisingly alive. Science News. Vol. 191, July 8, 2017, p. 4.

E. Conover. Ladybugs fold their wings like origami masters. Science News. Vol. 191, June 24, 2017, p. 5.

E. Conover. The scales of the ocellated lizard are surprisingly coordinated. Science News. Vol. 191, May 13, 2017, p. 32.

T.H. Saey. All patterns great and smallScience News. Vol. 178, July 17, 2010, p. 28.

T.H. Saey. Pigment pas de deux puts stripes on zebrafishScience News. Vol. 185, February 22, 2014, p. 9.

T.H. Saey. Tweaking the pattern equations. Science News Online, December 21, 2015.
