What NASA’s InSight lander has learned about Mars’ magnetism and quakes

Scientists release details on the probe’s first 10 months of findings about the Red Planet

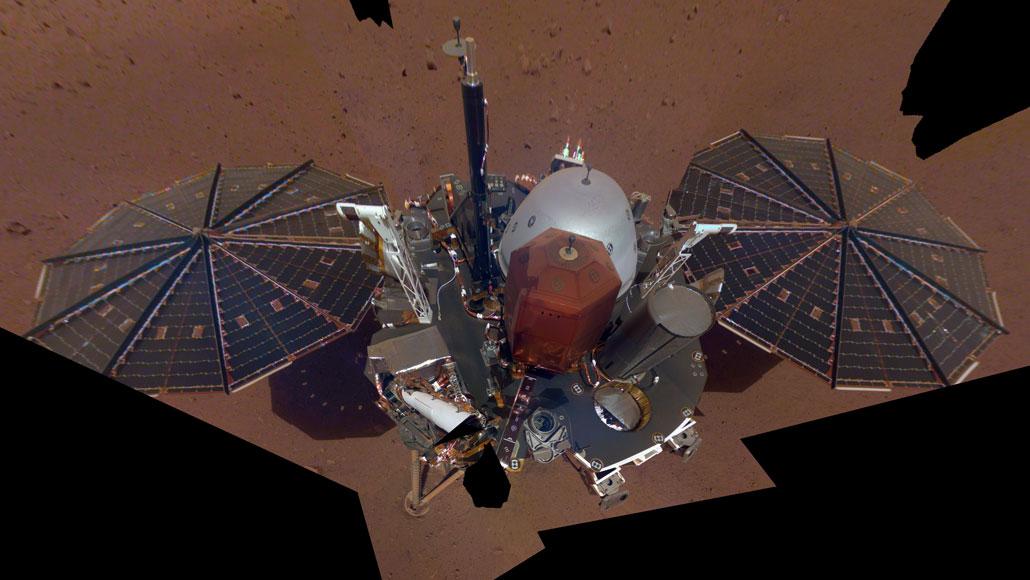

NASA InSight lander selfie

NASA’s InSight lander took this selfie (actually 11 pictures stitched together) on December 6, just 10 days after touching down on Mars.


Mars is not quite dead, geologically speaking.

The surface of the Red Planet trembles with Marsquakes, scientists report, one of several first results from the NASA InSight lander’s visit to Mars.

“We’ve finally established for the first time that Mars is a seismically active planet,” said mission lead Bruce Banerdt, a planetary scientist at the Jet Propulsion Laboratory in Pasadena, Calif., during a February 20 news teleconference.

InSight landed on Mars on November 26, 2018, on a two-year mission to probe the planet’s interior (SN: 11/26/18). The goal is to reveal more of Mars’ history and answer questions about the formation of rocky planets in our solar system and beyond.

To achieve that goal, InSight carries three main science experiments. A temperature probe sunk several meters into the Martian soil will track heat welling up from far below (though that probe has been having trouble burrowing its way down). Radio transmissions track InSight’s position and hence how much the planet wobbles around its axis. Results from those experiments aren’t yet ready for prime time.

However, InSight’s seismic experiment, along with some ancillary equipment, has turned up a wealth of new intel. Mission scientists present results from the first 10 months of these experiments online February 24 in Nature Geoscience and Nature Communications.

It’s too early to know what all the new revelations mean. “We’re really in the same situation as geophysicists were for Earth in the early 1900s,” Banerdt said. “We’re in the wild west of understanding what’s going on.”

In the meantime, here are four things that InSight has revealed about Mars so far.

1. Mars likes to shake things up

InSight’s seismic probe is like a stethoscope listening to the surface of Mars for rumblings deep underground. While researchers have long suspected that quakes gently rattle the surface of Mars, no probe before InSight had definitively detected one (SN: 4/23/19). As of September 30, 2019, the lander had recorded 174 Marsquakes, likely caused by tectonic activity.

“The general cause of Marsquakes is the cooling of the planet,” Banerdt said. “The details of any particular Marsquake are still difficult to figure out.”

Mars appears to be more active than the moon but less active than Earth. The quakes have been very gentle, said Philippe Lognonné, a planetary scientist at Paris Diderot University, during the teleconference. Unless you were standing right over the epicenter with two feet firmly on the ground, he said, you’d probably not feel most of them.

Most of the quakes have been too subtle to pinpoint their origins. But two seemed to originate from a region known as Cerberus Fossae, a geologically young landscape about 1,600 kilometers east of InSight strewn with landslides, several-million-year-old volcanic flows and dried-up water channels.

And the quakes just keep on coming. To date, the lander has cataloged about 450 events, and the frequency is mysteriously increasing.

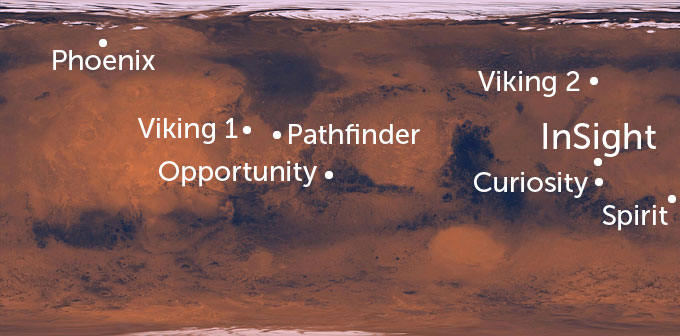

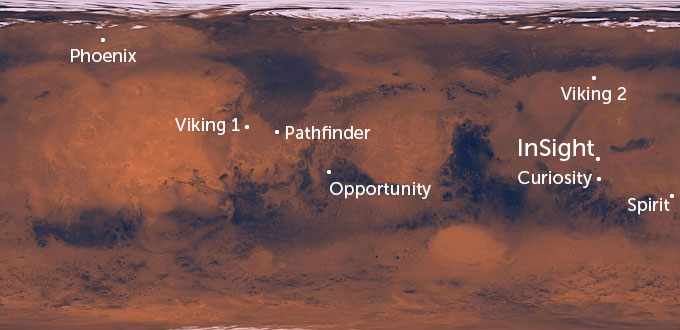

Mars landing sites map
InSight landed in a flat, smooth lava plain on Mars known as Elysium Planitia, about 600 kilometers north of the Curiosity rover’s landing site. The landing sites of other probes and rovers — most no longer active — are marked as well. JPL-Caltech/NASA
Mars landing sites map
InSight landed in a flat, smooth lava plain on Mars known as Elysium Planitia, about 600 kilometers north of the Curiosity rover’s landing site. The landing sites of other probes and rovers — most no longer active — are marked as well.JPL-Caltech/NASA

2. Mars has a highly magnetic personality

Unlike Earth, Mars no longer generates a magnetic field — but it did billions of years ago, and ghosts of that magnetic field remain imprinted in the planet’s rocks today.

Satellite images of InSight’s landing site indicate that the rocks there are too young to have been strongly magnetized by that ancient field. And yet, InSight measured a magnetic field coming from the surrounding rocks 10 times as strong as expected.

Given the age of the landscape, “the magnetization has to come from rocks beneath the surface,” said Catherine Johnson, a geophysicist at the University of British Columbia in Vancouver. InSight’s measurements combined with satellite imagery suggest that the magnetic field is encased in 3.9-billion-year-old rocks buried up to 10 kilometers underground.

“The fact that we’re seeing a much larger magnetic feature near the surface means there’s a wealth of magnetization that has been invisible to us so far,” Banerdt said.

3. Mars feels a magnetic beat from space

InSight also picked up numerous magnetic “pulsations” — relatively quick changes in the strength of the ambient magnetic field. Some of these bursts, the first ever detected on Mars, last for just a second while others last for minutes. But unlike the anomalously high magnetization that comes from deep underground, these pulsations likely originate far above the atmosphere.

The researchers suspect that electrical fluctuations in a planetwide magnetic envelope induced by the sun — not the planet itself — is to blame. Intel from NASA’s MAVEN spacecraft, which is currently checking out Mars’ upper atmosphere, may help the team connect changes on the ground to changes in the planet’s space environment.

4. Beneath the surface, Mars is all broken up

Marsquakes can be used as probes of the Martian subsurface. Since different types of seismic waves are deflected and slowed down by underground materials in different ways, the Marsquakes act like a kind of planetary X-ray, revealing how far down the planet’s crust goes and the likely makeup of that material.

A disappointing lack in large Marsquakes has so far prevented the team from peering as deep as they’d like. But they are starting to get a picture of the upper 10 kilometers or so of the planet. There is likely water — not huge aquifers, but molecules clinging to solid mineral grains. And hidden beneath the top layers of soil, the crust appears to be fractured by eons of impacts from space.

The fracturing is “something that originally was thought to be the case for Mars,” said Suzanne Smrekar, a geophysicist at the Jet Propulsion Laboratory. But researchers moved away from that idea after evidence of now-dormant volcanism suggested that perhaps remnants of that pummeling had been largely smoothed over. InSight, she says, “is telling us that maybe [the crust] is a bit more broken up than people have thought recently.”

Christopher Crockett is an Associate News Editor. He was formerly the astronomy writer from 2014 to 2017, and he has a Ph.D. in astronomy from the University of California, Los Angeles.
